Flame Retardant Polycarbonate Sheet: Clear V-0 Explained

Quick answer: Polycarbonate is already half-way fire-safe — LOI around 25 and a natural UL94 V-2 — but sheet applications usually demand V-0 without losing transparency, and that rules out every conventional flame retardant loading. The industry answer is sulfonate salts: KSS or KPFBS at just 0.05–0.1% takes clear PC to V-0 at 1.6–3.2 mm with no visible haze. Opaque sheet and PC/ABS blends use phosphate esters (BDP/RDP) instead. The buying trap: V-0 certified at 3 mm does not mean V-0 at your 1 mm wall — thickness is part of the rating.

Polycarbonate sheet is what you spec when glass is too heavy or too breakable: machine guards, safety glazing, skylights, lighting covers, EV charger housings and canopies. Most of those installs answer to a fire code or an electrical standard, so “flame retardant polycarbonate sheet” is one of the most searched PC variants. It is also the one where the chemistry is least forgiving — because the customer wants fire performance and wants to see through the part.

PC’s head start — and why sheet still needs help

Unlike polyolefins, polycarbonate brings real fire behavior of its own: an oxygen index around 25 (air is 20.9), a high ignition temperature, and natural charring that usually earns unmodified PC a UL94 V-2. For some indoor parts that is already enough — and worth checking before you pay for more.

Sheet applications push past it for two reasons. First, specs: machine guards, electrical enclosures, luminaires and building glazing overwhelmingly call V-0 (or a construction flame-spread class), not V-2 — mostly because V-2 permits flaming drips, and molten burning PC dripping out of a skylight is exactly the scenario codes exist to prevent. Second, thin walls: solid sheet at 1–2 mm and twin-wall profiles burn less gracefully than thick sections, so the natural V-2 is not even guaranteed where the sheet is thinnest.

The transparency problem — and the sulfonate solution

Here is the bind: typical flame retardant loadings are 10–25% of mineral, phosphorus or brominated additive, and every one of those turns water-clear PC hazy or opaque. For a machine guard, clarity is not cosmetic — it is the function.

The way out is a family of additives that work at homeopathic-looking doses: aromatic sulfonate salts. KSS (potassium diphenylsulfone sulfonate) or KPFBS (potassium perfluorobutane sulfonate, “Rimar salt”) at 0.05–0.1% catalyze PC’s own charring chemistry rather than fighting the flame directly — the polymer becomes its own flame retardant. At those loadings there is nothing to scatter light, so transparency and impact strength survive intact, and clear PC reaches V-0 in the 1.6–3.2 mm range. It is one of the most elegant tricks in flame retardancy, and it is unique to PC — the mechanism rides on polycarbonate’s specific decomposition path. Purists should note KPFBS is a fluorinated molecule; KSS is fully halogen-free, which matters if your declaration says “zero halogen” rather than “RoHS compliant”.

The last row is the craft detail. V-0 requires no flaming drips, and PTFE micro-fibrils are the standard anti-drip aid — but PTFE scatters light. In clear sheet the whole formulation game is balancing enough PTFE to kill drips against little enough to keep haze inside the optical spec. That balance, plus additive purity (any yellowing shows in a clear part), is why transparent FR-PC is a precision product rather than a commodity blend.

Thickness: the fine print on every V-0 claim

UL94 ratings are certified at a thickness. A sheet grade rated “V-0 @ 3.0 mm” earns exactly that — nothing about 1.2 mm twin-wall ribs or a thermoformed corner drawn down to 0.8 mm. Thinner is always harder: less mass to absorb heat, faster to sustain ignition, quicker to drip. Practical rules we give sheet buyers:

• Match the certification thickness to your thinnest section, not your nominal gauge.
• Thermoforming stretches the sheet — a formed guard can be 30–40% thinner at corners than the flat blank. Rate the formed part.
• For multiwall/corrugated profiles, ask for test data on the profile, not the resin plaque — ribs and air channels change flame behavior.

The same logic applies across resins — it is step three of our how to choose flame retardants framework — but PC sheet is where we see it bite most often, because the certified numbers look so comfortable at 3 mm.

PC vs PC/ABS sheet: don’t mix the recipes

A lot of “polycarbonate sheet” in the market is actually PC/ABS blend — cheaper, easier to process, better low-temperature impact. Fire-wise it is a different animal: the ABS fraction burns readily and kills the sulfonate trick (which needs PC’s own char chemistry), so FR PC/ABS runs on phosphate esters at ~10% instead, and transparency is off the table. If your quote request says “PC sheet” but the price smells like a blend, ask — the FR package, the rating path and the datasheet all change. Blend-side details live on our flame retardant ABS page, and the full PC additive picture on flame retardant polycarbonate.

How Rectivas supports FR polycarbonate sheet projects

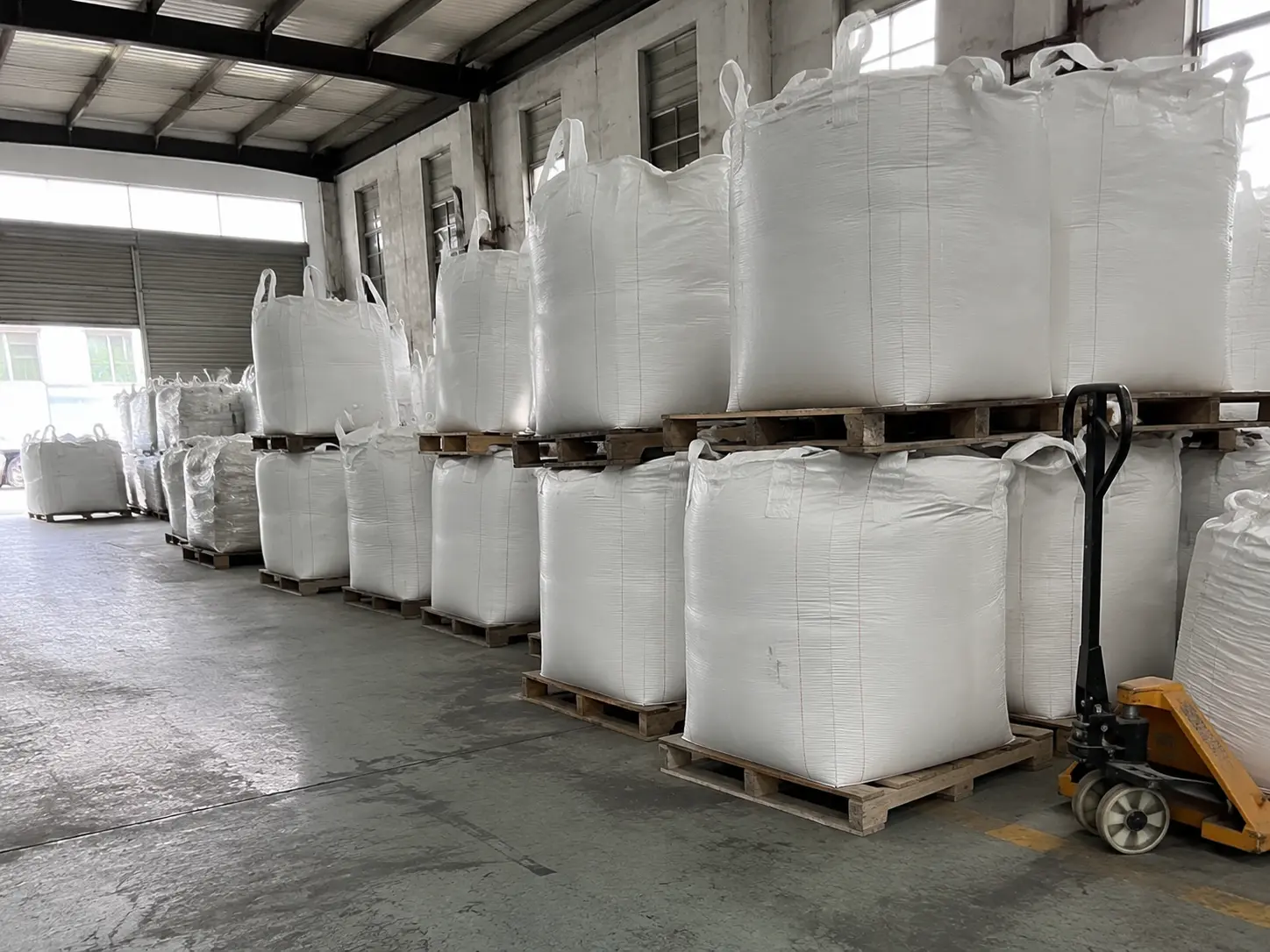

FR-PC is a standing halogen-free grade in our lineup, and for sheet extruders we supply the package two ways: compounded pellets ready for the sheet line, or concentrate for plants that blend at the extruder — part of our flame retardant masterbatch line, with carrier and let-down matched to your base PC’s melt flow. Transparent grades get the extra scrutiny they deserve: additive purity checked at incoming, dispersion verified so no particle ends up as a lens defect in a clear panel, and every loading ladder burn-tested in our in-house UL94 vertical chamber at the wall thickness you actually run — with LOI data and a CTI (Hebei) third-party report in the pack. For halogen-sensitive markets the halogen-free flame retardant additives route (KSS-based for clear, phosphate for opaque) is the default recommendation.

Send us the base PC grade and melt flow, sheet type (solid, multiwall, thermoforming blank), the thinnest wall in the finished part, and the clarity requirement. We will propose the package and prove it at your thickness before you commit a line trial. Request a quote to start.

FAQ

Is polycarbonate sheet flame retardant by itself?

Partially. Unmodified PC has an LOI around 25 and typically self-extinguishes to UL94 V-2 — better than most clear plastics. But V-2 allows flaming drips, and most sheet specs (guards, glazing, luminaires, enclosures) require V-0, which needs an additive package, especially at thin walls.

How is clear polycarbonate sheet made flame retardant without haze?

With aromatic sulfonate salts — KSS or KPFBS — at only 0.05–0.1% loading. They catalyze PC’s own charring instead of adding bulk filler, so clarity and impact strength are preserved while the sheet reaches V-0 in the 1.6–3.2 mm range. A trace of PTFE anti-drip is balanced against haze to hold the no-drip requirement.

Is flame retardant polycarbonate sheet halogen-free?

KSS-based transparent grades are fully halogen-free. KPFBS works similarly but is a fluorinated molecule — fine for RoHS, not for a strict “zero halogen” declaration. Opaque phosphate-based grades (BDP/RDP) are halogen-free; legacy brominated PC grades are not. Match the chemistry to the exact wording of your compliance requirement.

Why did my 1 mm part fail when the resin is rated V-0?

Because the rating was certified at a greater thickness — commonly 3.0 or 1.6 mm. UL94 performance drops as walls get thinner, and thermoformed corners are thinner still. Always verify the rating at your part’s thinnest section, with specimens made the way the part is made.

What is flame retardant PC sheet used for?

Machine guards and safety glazing, skylights and canopies, lighting diffusers and luminaire covers, electrical enclosure windows, transit interior panels and EV charging equipment — applications that want glass-like clarity with impact resistance, sitting under a fire code or electrical standard that demands V-0 or a flame-spread class.
